特长
- Quad Arm® Cortex™ A9 MPCore™
- Arm® Neon™ SIMD Engine
- 3D Engine (OpenGL® ES 3.1) POWERVR 8XE
- Socionext SEERIS Capture/Graphics/Display Engines
- Socionext Vision Processor
- DDR3-1866; DDR3L-1600, 16/32/64 bus width
- 3 Independent Display controller
- 6 Independent Video Capture Units
- Multi-format Decoder Full-HD: 6x30fps or 2x60fps
- Wide range of peripherals for external connectivity
- Multi-format Encoder Full-HD: 2x60fps
- Motion JPEG Decoder Full-HD 6x30fps
- Standard I/O: UART, SPI, USB, Ethernet AVB etc.
- Automotive I/F: MediaLB® (3-/6-Pin), CAN
- FCBGA-1024; 0.8 pitch
*：SEERIS是Socionext公司的注册商标。

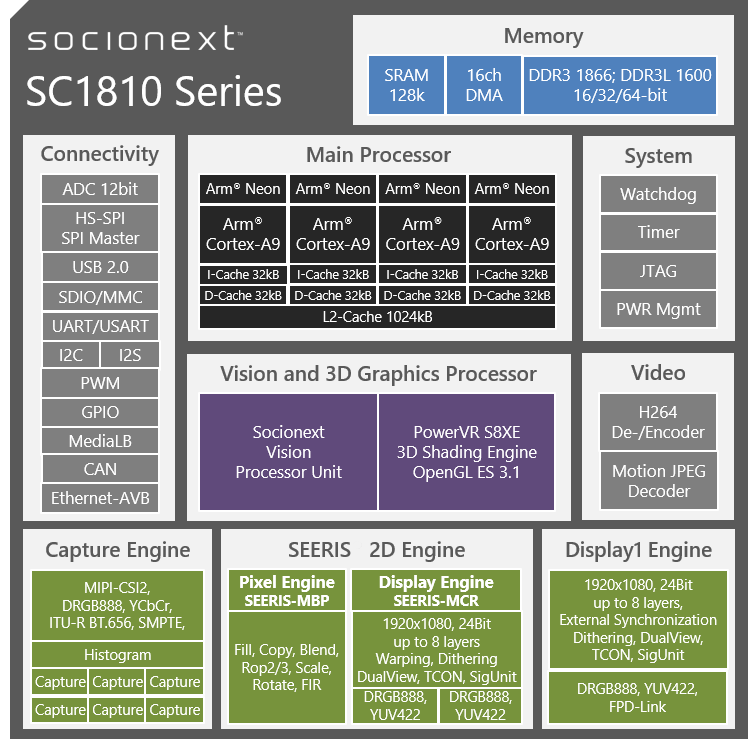

Domain Architecture
规格
| SC1810AR3-134 | SC1810AR3-113 | SC1810AR3-103 | |
|---|---|---|---|
| Package-Pin | FCBGA-1024 | ||
| Size,Pitch | 27x27mm, 0.8mm | ||
| Processor | Arm® Cortex™-A9 Dual L1 Cache I:32KB + D:32KB L2 Cache 1MB 1066MHz |
Arm® Cortex™-A9 Quad L1 Cache I:32KB + D:32KB L2 Cache 1MB 1066MHz |
|
| Memory | DDR3-1866/DDR3L-1600 ×16, ×32, ×64 |
||
| Graphics | PowerVRTM Series8XE GE8300 3D Engine |
||
| Socionext 2D Engine(SEERIS®) |
|||
| Video | Display Controller 2× up to 1920×1080p DRGB, FPD-Link, YUV |
Display Controller 3× up to 1920×1080p DRGB, FPD-Link, YUV |
|
| Video Capture 4×1920x1080 DRGB, YUV, MIPI-CSI2 |
Video Capture 6×1920x1080 DRGB, YUV, MIPI-CSI2 |
||
| Codec | H.264 Decoder M-JPEG Decoder |
H.264 Encoder/Decoder M-JPEG Decoder |
|
| Recognition | Socionext Vision Processor(Open VX) DPA-only |
Socionext Vision Processor(Open VX) DPA+HWA |
|
| Strage | USB2.0 host/func x1 SD/eMMC rev3.0 x1 |
||
| Peripherals | Standard I/O I2C, I2S, UART, SPI, etc |
||
| Network CAN, MOST 3-Pin, Ethernet-AVB(MII/RMII/GMII,IEEE802.1AS/IEEE802.1Qav/IEEE802.1Qat) |
|||
| Support OS | eT-Kernel QNX |
||
