• 高速连续拍摄
- 让CMOS传感器最大性能得到发挥的信号处理
- · 14 Mpix/7fps (100 Mpix/s)
- · 通过连续拍摄功能提供新的应用
• 视频应用
- · H.264 1080/p30
- · 人脸识别
- · 视频稳定
- · 3D降噪音 (H.264)
- · 连续自动对焦
- · 对象跟踪
- · WDR (宽动态范围)
- · 音频处理或线性PCM/AAC-LC/副CPU μLaw (ARM9)
[Noise Reduction]
[WDR (Wide Dynamic Range)]
规格
| ISP Process | · 65nm CMOS Technology |
|---|---|

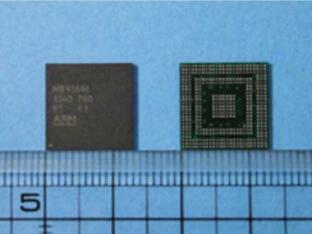

| Package Size | · Ball Pitch 0.5mm |
| · Body size 13mm x 13mm | |
| CPU | · ARM946E-S 288MHz x2 |
| Movie Codec | · H.264 1080/p30, 720/p30 |
| Image Processing rate | · 216Mpix/sec |
| Max Image Size | · 5.4K Pixel(Horizontal) |
| Sensor Interface | · Parallel：12bit 1ch |
| · Serial：sub-LVDS 8Lane, MIPI 4Lane | |
| Host Interface | · UART/CSIO 5ch, USB2.0 High-Speed |
| LCD Interface | · 8bit and 24bit |
| TV Interface | · Composite(NTSC,PAL) |
| · HDMI(need Ext Chip) | |
| Card Interface | · NandFlash, SDCard 2ch |
| Continuous Shooting | · 14M/7fps |
| Face Detection | · Support(Hardware Assist) |
| Distortion Correction | · Support(Hardware) |
| Video Stabilization | · Support(Hardware) |
| Still Stabilization | · Support(Hardware) |
